产品介绍:

Product Introduction

This double high voltage transformer developed and manufactured by our company is two incoming line voltages 6.6kV and 10kV,with capacity of 1000KVA. The high voltage is converted by a no-load tap changer.After conversion, the connection group remains unchanged, the proportion of tap voltage remains unchanged, the winding turns of transformer are arranged reasonably, and the short-circuit resistance is strong. There are no idle turns in the two voltage operation states, but these two voltage can't use in same time.

This transformer is equipped with a protective current transformer for each phase of high voltage. And each high-voltage bushing is equipped with an arc horn. The arc horn is usually connected between the energized wire and the ground and the protection device. When the voltage value reaches the specified action voltage, the arc angle acts immediately to limit the overvoltage amplitude and protect the insulating equipment through charge flow; The rear voltage value is normal, and the arc horn can quickly restore to the original state to ensure the normal power supply of the system.

We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!

Scope of Supply

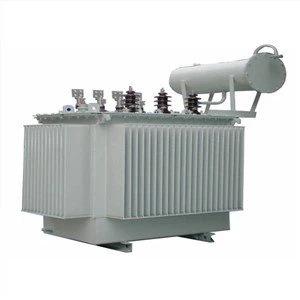

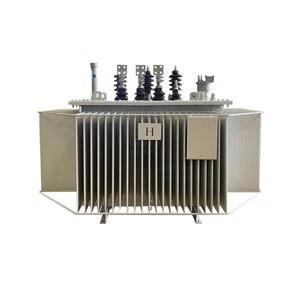

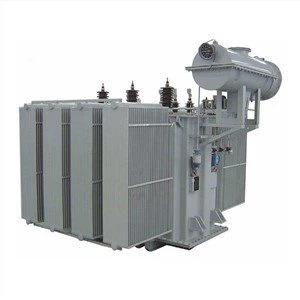

Product: Liquid Filled Power Transformer

Rated Power: Up to 200 MVA

Primary Voltage: Up to 230 KV

The transformer can be designed according to customer’s requirements

Technical Data Sheet

5 MVA oil type power transformer specifications and data sheet

1000 kVA 10(6.6)/0.4KV Transformer Drawing

1000 kVA power transformer diagram drawing and size.

1000 kVA 10(6.6)/0.4KV Transformer manufacturing

Finished 1000KVA 10(6.6)/0.4KV Transformer

The transformer was painted to gray color (RAL 7035) as customer requirements.

Name Plate

1000 kVA transformer nameplate details

Packing and Delivery

Transformer Knowledge

What are arc horns:

Arc horn (arc horns) is a prominent conductor used to protect the insulator or switching hardware of high voltage transmission system from flashover damage. Due to atmospheric current, lightning stroke or electrical fault, Overvoltage on the transmission line will produce arc (flashover) on the insulator, thus damaging the insulator. Alternatively, atmospheric conditions or transients during switch operation may cause arcing in the breaking path of the switch. The arc horn provides a path for flashover to occur, bypassing the surface of the protective device. The horns are usually paired on both sides of the insulator, one connected to the high voltage part and the other connected to the ground, or at the breakpoint of the switch contact. They often appear on insulator strings of overhead lines or protective bushings of transformers.

FAQ

1. How soon can you delivery the transformer?

It depends on the quantity and capacity of the transformer, normally within one month since the date drawing confirmed by buyer.

2. How long can you provide the quality warranty?

12 months since the date transformer operated.

3. What payment method do you accept?

T/T (wire transfer), L/C both accepted.
