产品介绍:

DESIGN CAPABILITY

Mild steel, optional stainless steel tank

Capacity:10mva

Primary Voltage: 2400-44000V

Secondary Voitage:From 120Y/208V

Loop or Radial Feed Configuration

Insulation Fluids: Mineral Oil,Silicon Oil and

FR3(Vegetable Oil)

ANSI, DOE, IEEE, CSA and IEC

APPLICATIONS

High eficiency design

Special Ambient Design

Low Sound Level Design

50 Hz and 60 Hz Design

K-Factor Rating

3

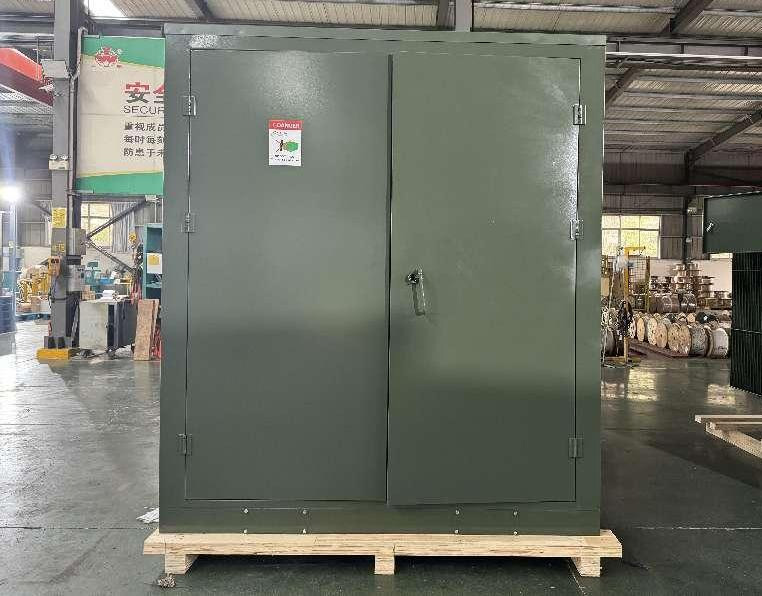

-Three-point latching door for security

Removable sill for easy installation

-Stainless steel cabinet hinges and mounting studs

-Bolted-on cabinet with removable sill having the

following depths:

/ 19" doep for 300kVA through 750 kVA

/22" deep for 1000kVA through 1500kVA

/24" deep for 2000 kVA through 3750kVA

/30" deep for 5000 Kva through 7500kVA

-For live front construction, externally clamped

high voltage porcelain bushings with a single

eyebolt, clamp-type connector (accommodates

##6 AWG solid to 250 MCM stranded conductors).

-For dead front construction, externally clamped

high voltage bushing wells for loadbreak or

non-loadbreak inserts,

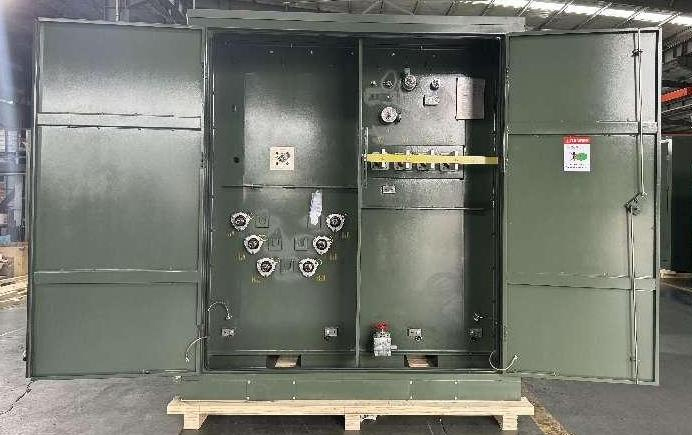

-HV and LV compartment doors-hinged and lift-off

type with 120' holding bars

-Steel HV/LV compartment barrier

-Padlocking facikity with one penta-head bolt on

the LV compartment door and two penta-head

bolts on the HV compartment door-including 3

point latching mechanism

-HV connection:

/Live front-external clamoed and removable HV

bushings with eyebolt, clamp type connector

-LV connection:

/Externally clamped polymer & porcelain LV

bushing with 4-12 Hole spades

- Oil drain plug for500 kVA and below

- 1" drain valve with sampler for 750 kVA and above

- Oil fill plug

- Five-legged core/coil assembly.

- Removable LV neutral ground strap; as required

- Nameplate per ANSI requirement

- Self-actuating pressure relief valve

- Lifting lugs (4)
