Product Introduction
This 7.5 MVA transformer was delivered to South Africa in 2018. the rated power of the transformer is 7500 KVA. It is a Step-down transformer 33KV to 440V, the HV of the transformer is 33kv, and the LV is 440v. It has the complete symmetry tri-phased iron core magnetic circuit, which greatly reduces the magnetic resistance and no-load loss, and thus, though adopting the traditional materials, which is more high efficient and energy saving, producing smaller noise and with more compact structure. Our 7.5 MVA transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.
SCOTECH ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.
Scope of Supply
Product: Oil Immersed distribution Transformer
Rated Power: Up to 5000 KVA
Primary Voltage: Up to 35 KV
Technical Specification
7.5 MVA 3 phase step-down transformer specifications and datasheet.
Delivered to | South Africa |
Year | 2018 |
Model | S11-7.5 MVA-11/0.4KV |
Type | Oil Immersed Power Transformer |
Standard | IEC60076 |
Rated Power | 7.5 MVA |
Frequency | 50 HZ |
Phase | Three |
Cooling Type | ONAN |
Primary Voltage | 33 KV |
Secondary Voltage | 440 V |
Winding Material | Copper |
Vector Group | Dyn11 |
Impedance | 7.5% |
Tap Changer | NLTC |
Tapping Range | ±2*2.5% |
No Load Loss | 8 KW |
On Load Loss | 38.3 KW |
Accessories | Standard Configuration |
Remarks | N/A |
7.5 MVA 33/0.4KV Transformer Oil Outlet

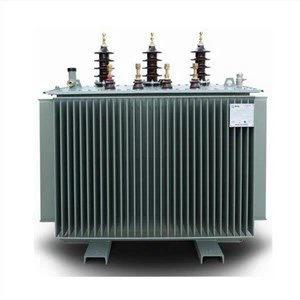

Finished 7.5 MVA 33/0.4KV Transformer
Packing and Delivery
What is the difference between a power transformer and a distribution transformer?
Main Differences. Power transformers are used in transmission network of higher voltages for step-up and step-down application (400 kV, 200 kV, 110 kV, 66 kV, 33kV) and are generally rated above 200MVA. Distribution transformers are used for lower voltage distribution networks to end user connectivity.
FAQ
1. How can you support us as a partner?
We will offer you the best price, best service and other supporting documents such as quotation, technical data sheet, drawing, reference list, manufacturing plan, quality control plan, testing plan, test report, etc.
2. What is the scope of your after-sale service?
Installation, commissioning, training, maintenance, etc.
3. Why choose SCOTECH?
Experienced transformer supplier with professional engineering team.
Complete customer service from quoting to operating.
Quick response 24/7.
